The long wait had finally arrive.............

Well guys....... Subrosa Complete Bike had launched into Singapore Already...... Let's take a good look at the Subrosa Letum Dirt.

Custom Designed Frame / Fork / Bar

4130 CroMo Main Frame

Intergrated Headset

Mid Bottom Bracket

Tubular 3pc.CroMo

Cranks 25-9 Micro Gearing

14mm Sealed Bearing Cassette Hub

14mm Alloy Front Hub

48H Alloy Rims

Custom Subrosa Seat

Shadow Finger Banger Grips

Total Weight 12.882 kg

BSD coming to Singapore

Good News to all riders........ A scotland brand known as BSD will be launching their product in Singapore. And I had become their sole distributor.

They produce Great parts like 'Jersey Barrier' hub guard, Too Loose bar, Sleazy bar and more...........

Their Website http://www.bsdforever.com/

Some picture of their products:

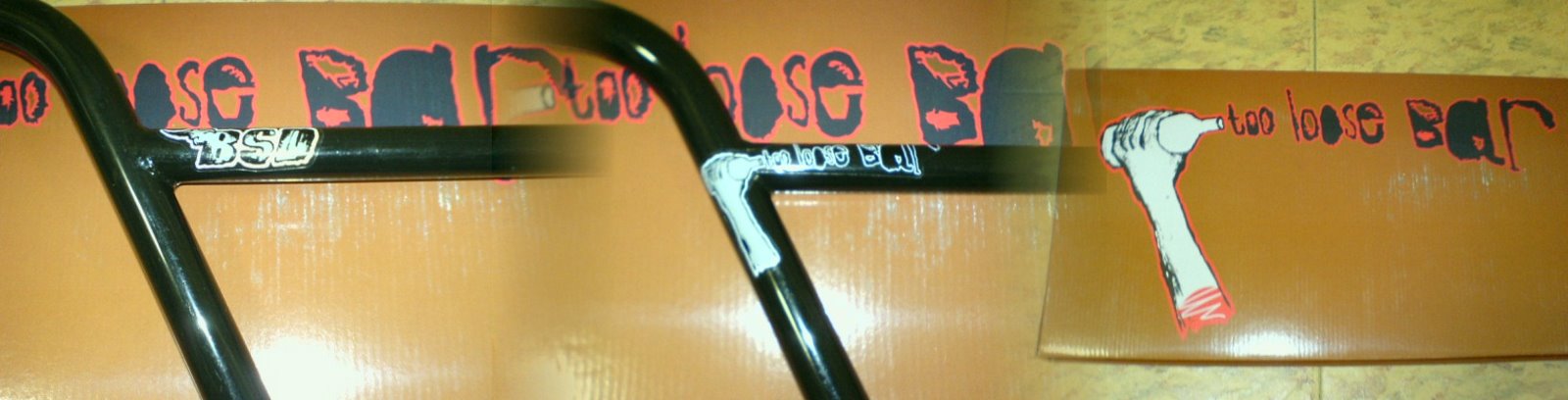

Too loose Bar:

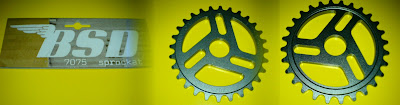

Lite Sprocket:

Frames and more Frames

In Bmx, what is the most essential of the Parts List?

- Frame

- Crank

- Wheel

- and many more parts

Definitely the frame is choosen answer. Due to, other the frame, you can't put any parts to build up a complete bike.

Talking about frame, for the most updating concept for 2008! Some of the frame manufacturer will have use 36 degree x 45 degree integrated headset (it is also known as IS2). Currently, most of the frame still come with a headset using 45 degree x 45 degree.

Next, we will come to the specification of the frame that include the Top tube length and the chainstay length and Weight ( most of the rider, i had enciunter want to make their bikes as light as possible ).

I will list out 3 updated frame and their specification:

1) Stolen E-train frame

Toptube: 20, 20.5 or 20.75"

Rearend: 13.75"

Headtube angle: 74.5 degrees

Seattube angle: 71 degrees

Seatpost size: 25.4mm

BB type: Spanish

Dropout size: 14mm

Removable gyro tabs

Weight: 5 lbs

2) Kink Lost Dutchman frame

Toptube: 20.5, 20.75 or 21"

Rearend 14"

Headtube angle: 74.5 degrees

Seattube angle: 71 degrees

Seatpost size: 25.4mm

BB type: Mid

Dropout size: 14mm

No gyro tabs

Weight: 4 lbs 12 oz (base on 20.5" TT)

3) Fly Tierra frame

Toptube 19.8, 20.6 or 21"

Rearend 13.25"

Headtube angle: 75 degrees

Seattube angle: 71 degrees

Seatpost size: 25.4mm

BB type: Spanish

Dropout size: 14mm

Removable gyro tabs and cable guide

Weight: 4.65 lbs

(note: the seat tube is offset 0.4" towards the back, so the actual TT length is 0.4" longer than how the bike will truly feel (21" rides like 20.6", etc.)

Eastern Reaper Complete Bike In Singapore!!!!

Upon looking at Eastern Website, one frame catches my eyes on the spot. It is a limited stock Reaper that is in White color. Without much hesitate, i intend to get it from Eastern Bikes again. So, the concept of building up the white frame was firstly been discuss in 20 inches forum. Under the topic: Will White bar, fork and bar be nice? So, i did list down the parts that will be use in building up the complete bike. One user, by the name of Rolando had a very good concept. From the list of parts that i had written, he is able to give me a perfect sketch of my dream bike.


Rolando Design:

















Eventually, i had what i needed to build up the white complete bike:
1) Eastern Reaper frame
2) Eastern Ultraslim fork
3) Eastern Ultralight bar
4) Eastern Deceptikon stem
5) The parts goes on.................

Complete Bike Check

This is a cool bike......... Hereby is the Specification:

Frame: Subrosa Pandora (Ryan Sher)

Fork: Eastern Ultraslim

Bar: United Squad

Stem: Demolition F1

Grips: DuoBrand Scotty Cranmer Signature

Barends: Kink

Headset: Eastern Integrated

SeatClamp: Kink

SeatPost: Fit

Seat: Eastern TightAss

Crank: Demolition Medial Lite

Sprocket: Eastern Medusa Lite (25t)

Pedals: Demolition Pro

Chain: KMC 710 SL

Front and Rear Tires: Flybikes

Complete wheelset: Demolition

Subrosa

What's The Meaning Behind Subrosa?
- It means "under the rose"

WHO IS INVOLVED WITH SUBROSA?
- It's through Sparky's Distribution. Ronnie B.

Who is involved with Subrosa?
- The team is Rich Hirsch, Hoang Tran, Eli Platt and Ryan Sher

For more info, check out subrosabrand.com or make a new friend at MYSPACE.COM/SUBROSABRAND


Specification for the 1st Subrosa Frame in Singapore:
Material: - 4130 Sanko Chromoly
- Double Butted top / down tubes for added strength and weight reduction

Top tube: - 20"

Chain stay: - 13.75" rear end length with room to remove the rear wheel without breaking the chain
- .049 wall thicknessto reduce denting

Head Tube: - 75 degree integrated Campy style (45 x 45)
- Head Treated

Seat Tube: - 71 degree
- Seat Tube flared at BB conjunction for wider welding area
- Creating less flex

BB Style: - Mid BB
- Externally machined for weight reduction
- Internally machined after welding for easy bearing installation
- Heat-treated

BB Height: - 11.5"

Brake Mount: - Angled brake mounts for less cable stress
- Cable guide to eliminate the use of Zip ties

Dropouts: - 5mm
- Machined detail for weight reduction
- Heated treated

Weight: - 4.8 lbs at 20.5" length

Colors: - black

What more, free additional Subrosa Sticker is given......

Pandora frame:

T-Shirt:

Stickers:

Titanium Handlebar:

These bars are really, really, really really light. Oh yeah, they're manufactured using the highest quality 6A1-4V titanium. Clear coated to prevent corrosion.
100% 6Al-4V Titanium
7.5" rise
11 degree back sweep
3 degree up sweep
24.75" Wide
Weight: 14 oz.

Handgrip:

Bascially, there is 3 design at the moment. It consist of Rib, I.D and O.G.

O.G Grips: These are the first grips that Eastern made. Hence the name O.G., dog. The little EB's make this a great gripping grip that's soft and durable. Grab on...
Eastern logo embossed throughout
Super-soft compounds
Plastic screw-in bar-ends included
Weight: 3.9oz a pair

Rib Grips: If you like your grips a little thicker then the Rib grips are a great choice. This is a thick comfy feeling grip that is... um... ribbed for your pleasure.
Thicker profile design
Soft compound
Plastic screw-in bar-ends included
Weight: 4.7oz a pair

I.D Grips: These are a great grip if you want something real thin. They may wear out a little faster than our other grips but man they feel great the second you put them on your bike!
Low-profile design
Available in soft and hard compounds
Plastic screw-in bar-ends included
Weight: 3.7oz a pair

Magnesium Sealed Bearing Pedals:

True dual-concave design
Heat-treated chromoly axle
Knurled pedal surface
Removable pins
Allen wrench and extra pins included
Weight - 18oz pair

Pro Alloy Seat Post:
CNC machined 6061 aluminum
Internal I-beam construction
Ultra lightweight
CNC 6061 guts
Weight: 9.6oz
Color: Black

Medusa Lite Sprocket:

CNC machined 7075 alloy
5mm thick
Machined to save weight but strong enough for abuse



American/Mid Bottom Bracket:

Stickers:

Macneil S.L Seat & Stump Post:

Fit Seat Post:

Demolition Cassette Hub Vs Khe Geisha Street Freecoaster hub:

Kink Seatclamp & Barend & Integrated headset Vs United Seatclamp:
